Fast Charge GaN Wall Charger H-100 (CND-CHA100W01)

Product features

  • GaN semiconductors used
  • PD and QC3.0 protocols supported
  • Charges 4 devices simultaneously
  • 2x USB type-C ports 100W
  • 2x USB type-A ports 30W
  • Automatic detection of the optimal current parameters for a charged device

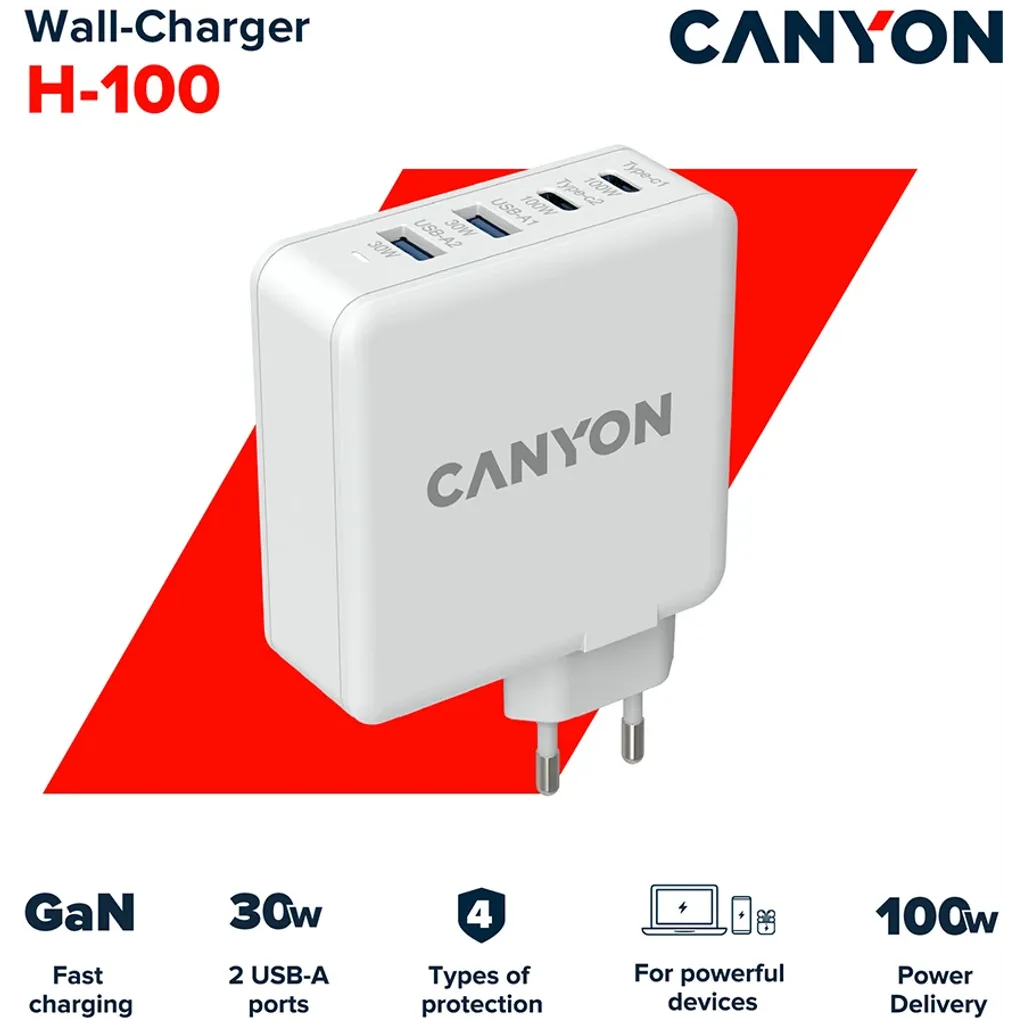

Fast Charge GaN Wall Charger H-100

Canyon's H-100 charger belongs to the new, GaN charging device type, constructed with the usage of semiconductors based on gallium nitride. This material allows to increase the power of the charger using the same gauge. It allowed the H-100 model to have such a compact size and be able to charge 4 devices simultaneously. Each of the two USB type-C ports can supply power up to 100 watts, and each of two USB type-A ports - up to 30 watts. Each port is labeled. The smart chip supports PD and QC charging protocols and distributes charging power in a way that prevents overheating of connected gadgets. A perfect tool for charging devices from a power socket.

Characteristics

Warranty Information

  • Warranty Validation Criteria Serial number
  • Warranty Term 24 months
  • Warranty Available

Features

  • Compatibility Most smartphones, mobile phones, tablets, GPS, cameras, MP3, MP4, PDA, etc.
  • Certifications CE, RoHS
  • Input AC 100-240V
  • 4 types of protection Short circuit protection; overcurrent protection; overheat protection; overload protection
  • Semiconductors used GaN
  • Quantity of USB ports 4
  • Quantity of USB-C ports 2 ports, 100 W each
  • Quantity of USB-A ports 2 ports, 30 W each
  • Output 1 USB-C1/C2: 5.0V /3.0A, 9.0V/3.0A, 12.0V/ 3.0A, 15.0V/ 3.0A, 20.0V/ 5.0A - 100.0 W Max
  • Output 2 USB-A1/A2: 4.5V/5A, 5.0V/4.5A, 9.0V/3.0A, 12.0V/2.5A, 20.0V/1.5A - 30.0 W Max

Materials and sizes

  • Case Plastic
  • Battery type Gallium nitride

Size and weight

  • Charger dimensions 73 x 70 x 30 mm
  • Charger weight 200 g

Color

  • CND-CHA100W01 White

POWER CAPACITIES

  • Ports combination The maximum possible power of the device
  • USB-C1 – 5.0V/3.0A 15W; 9.0V/3.0A – 27W; 12.0V/3.0A – 36W; 15.0V/3.0A – 45W; 20.0V/5A : 100W max
  • USB-C2 – 5.0V/3.0A 15W; 9.0V/3.0A – 27W; 12.0V/3.0A – 36W; 15.0V/3.0A – 45W; 20.0V/5A : 100W max
  • USB-A1 – 4.5V/5.0A 22.5W; 5V/4.5A – 22.5W; 9.0V/3.0A – 27W; 12.0V/2.5A - 30W; 20.0V/1.5A : 30W max
  • USB-A2 – 4.5V/5.0A 22.5W; 5V/4.5A – 22.5W; 9.0V/3.0A – 27W; 12.0V/2.5A - 30W; 20.0V/1.5A – 30W max
  • USB-C1 + USB-C2 20.0V/3.25A + 20.0/1.5A = 65W + 30W = 95W max
  • USB-C1 + USB-A1 20.0V/3.25A + 20.0/1.5A = 65W + 30W = 95W max
